Description

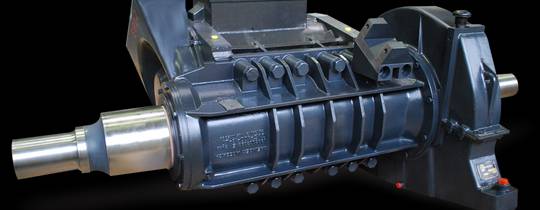

- Single-stage helical gearbox
- Motor shaft is the input shaft of the gearbox; motor makes a unit together with the gearbox
- Unsprung drive which is supported by the so-called „cannon-box“ on the wheel set shaft
Technical data
| Top speed (km/h) | 100 |
| Max. input torque (Nm) | 6,216 |
| Gear ratio | 5.95 |
| Max. input speed (rpm) | 3,064 |

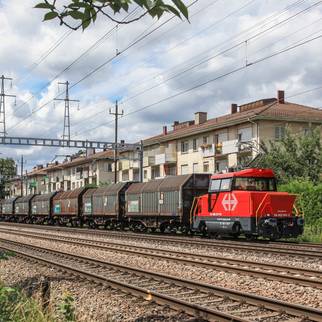

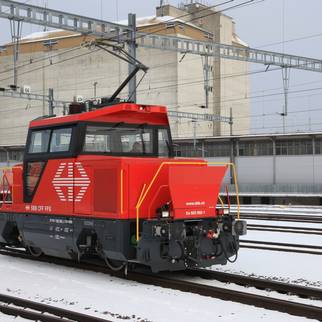

| Reference | Stadler - SBB - Ee 922 |
