Description
- System of helical-bevel gearbox (EHA/497, master) and bevel gearbox (E/327, slave)
- Typical master / slave arrangement for diesel-hydraulically driven locomotives
- Compact design for narrow-gauge locomotives with 760 mm of track gauge
Technical data
| Top speed (km/h) | 80 |
| Max. input torque (Nm) | 12,150 |
| Gear ratio | 4.97/3.27 |
| Max. input speed (rpm) | 2,720 |

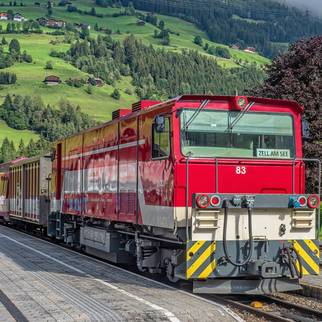

| Reference | Zillertalbahn - diesel locomotive |
Photo gallery
