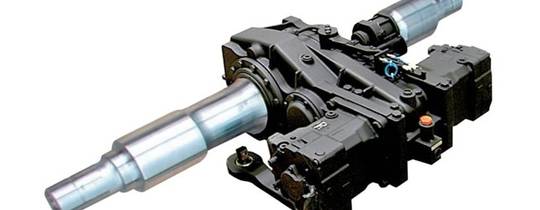

Description
- Two-stage helical gearbox
- Equipped with a switching mechanism for disconnecting during fast towing trips
- Powered by 2 hydrostatic motors on both sides of the gearbox
Technical data
| Operating speed (km/h) | up to 80 |
| Towing speed (km/h) | up to 80 |
| Max. input torque (Nm) | 2,800 |
| Gear ratio | 6.20 |
| Max. input speed (rpm) | 3,224 |
| Shaft diameter (mm) | 223 (at bearing) |
| Reference | Baneservice - vehicle LM5 |
